Dew Point Sensor

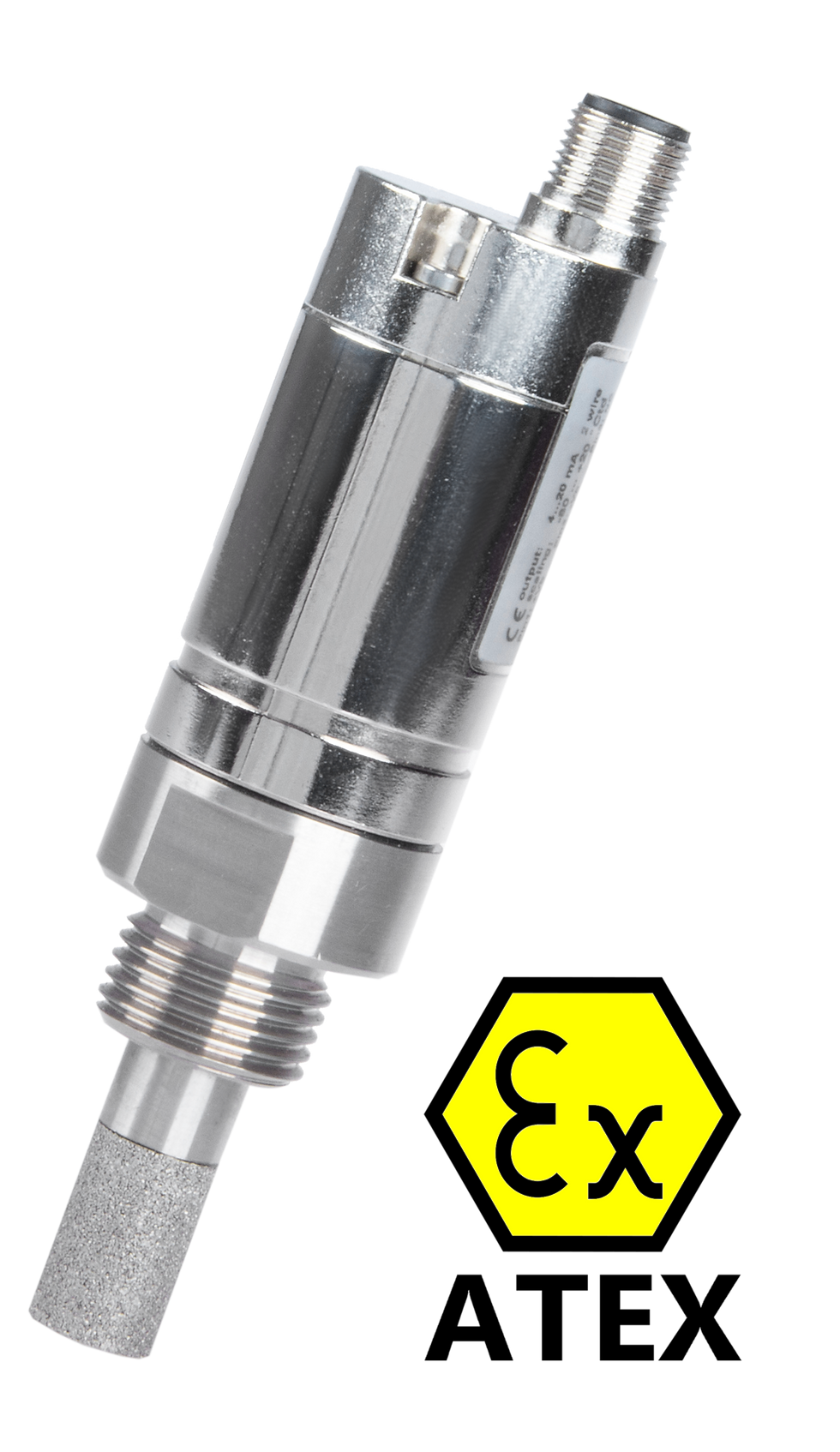

CS-Instruments FA 515 Ex
Dew point sensor
Specification:
Robust design
Pressure-resistant up to 500 bar
Long-term stable humidity sensor, proven for years
4...20 mA Analogue output in 2-wire technology
Additional Measured values adjustable via Software: % rH, g/m³, mg/m³, Ppm V/V, g/kg
Explosion protection according to ATEX / safety in hazardous areas
NEW: Higher resolution of the Sensor signal thanks to improved evaluation electronics
measures the Dew point or Pressure dew point in potentially explosive areas and can be used in many non-aggressive Gases.
Typical areas of application: Compressed air, Argon, Nitrogen, Biogas, Natural gas, Hydrogen, etc.
Our Dew point sensor FA 515 Ex fulfils the following industry approvals:
ATEX II 2G Ex ib IIC T4 Gb Zone 1, gas, Intrinsically safe, temp. 135 °C
ATEX II 2D Ex ib IIIC T80°C Db Zone 21, dust, intrinsically safe, temp. 80 °C
Please note: The FA 515 Ex may only be operated in conjunction with approved transmitter power supplies or safety barriers or galvanic isolating elements with max:
Ui = 28 V max.
Ii = 95 mA max.
Pi = 0.65 W max.
