Features

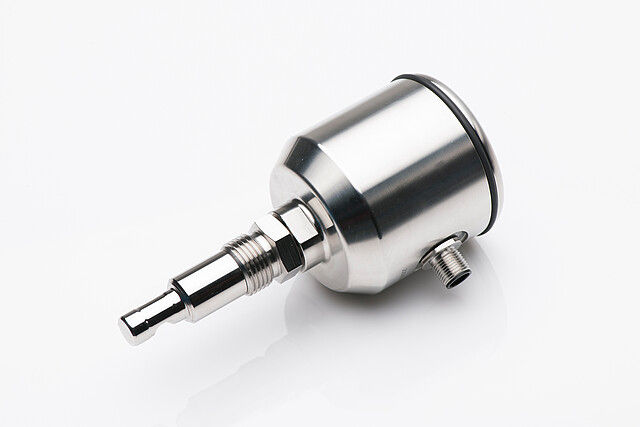

Hygienic turbidity measurement for the food and beverage industry
Large measuring range with factory calibration 0...6AU
Measurements in absorption / AU or turbidity units (AU, EBC, FAU, TEF, mg/l %, NTU*) or customised units (freely adjustable with up to 30 points)
Simple recalibration option using reference filter for OPL 5mm
Compact design with integrated electronics and backlit display for easy parameterisation
IO-Link
Integrated digital and analogue output
LED light source, LED service life > 100.000 Hours
Resistant sapphire windows
CIP/SIP-suitable
Hygienic design, polymer-free sealing system
Process monitoring and documentation
Technical specifications
180° Transmitted light turbidity measurement *
Measuring range depending on the optical path length (OPL) up to 0...6AU,0...6600 EBC, 0...26400 FAU, 0...26400 NTU**
Light sourceLED
Wavelength 880 nm (NIR)
Material Stainless steel1.4435 (316L)
Surface quality electropolished <0.37 µm Ra
Window saphire
Supply voltage18...30 VDC
Output signal 4…20mA; IO-Link
Switching output PNP 24 V, Normally closed Normally open contact
Cable connection M12 plug, 5-pin
Process connection G1/2" elastomer-free hygienic sealing system
Ambient temperature -20...70°C
Process temperature 0…90 ºC, 141 ºC Max. for 2 hours. (SIP - Cycle)
Process pressure 16 bar max. (230 psig) at 60 ºC
Response time <200mS
